Introduction
The Amstrad CPC (Colour Personal Computer) series was a series of 8-bit home / personal computers that were manufactured by the British company Amstrad between 1984 (launch of the CPC464: 21st June 1984) and 1993 (?). The CPC, like most contemporary home micros, had an integrated computer-in-a-keyboard design. Also incorporated in the keyboard was the tape recorder or disc drive.
In general what Amstrad aimed for was to offer a completely integrated solution at a low price. Just as with Amstrad's stereo towers before, Alan M. Sugar wanted to provide a solution with as few separate components as possible, with as few cables as possible and at as low a price as possible. A truck driver, unfamiliar with computers, was often cited as the CPC's target market.
As a result, Amstrad chose ready off-the-shelf components and used low-cost production methods in an effort to bring manufacturing costs down. They also included a monitor to connect the computer to - a move which, while raising the price, was designed to free the home TV from little brats hogging it for a dose of Ikari Warriors while Eastenders was on. This concept appealed to users and proved to be a success.
The combination of low cost, integrated design, good manufacturing quality and some impressive features like CP/M and an 80-column display mode (lacking in much of the competition, particularly the Sinclair ZX Spectrum and Commodore 64) proved to be a success both with home users and small businesses, and Amstrad went on to sell millions of CPCs.
Because of its use of the Z80, which was also used in the Sinclair models, some of the earliest games found on the CPC were fairly direct ports of the Spectrum versions which failed to take advantage of the CPC's extra capabilities. The amount of Spectrum ports has often been overstated by those who wish to knock the machine, and in fact formed a comparatively small number of largely unsuccessful games. Nonetheless, those that were published left users and reviewers with a bad taste in their mouth.
At its core, the CPC combined a standard 4MHz Z80A with off-the-shelf components and a custom Gate Array chip. The firmware comprised two 16k ROMs (combined onto one 32k chip): one was effectively the operating system, the other the fast and flexible Locomotive BASIC interpreter. All machines except the original 464 would also include a further 16k ROM (on a separate chip), the AMSDOS disc operating system.
In all, there were three 'classic' models, the CPC 464, 664 and 6128; plus two short-lived later advanced models, the 464 Plus and the 6128 Plus. A final iteration was the GX4000 games machine based on the CPC+ computers.
3 million units sold.
See also: CPC Prototypes.
Price positioning
At launch, the Amstrad CPC 464 was one of the most expensive 8bit computer on the market, as the consumer was forced to buy it with its tape recorder and monitor.
| Machine | Manufacturer | Price (Francs) | Source: Micro 7 #21 (11/1984) |
|---|---|---|---|
| 800XL (PAL) | Atari | 2199 | advertisement Atari |
| 800XL (SCART) | Atari | 2499 | advertisement Atari |
| Alice | Matra | 1199 | advertisement Alice |
| Alice 32 in suitcase | Matra | 2495 | advertisement Alice |
| Atmos | Oric | 2350 | advertisement Vismo |
| BBC Micro | Acorn | 5990 | advertisement JCS |
| C64 (PAL) | Commodore | 2990 | advertisement Ordividuel |
| C64 (SCART) | Commodore | 3990 | ads Ordividuel (C64 modified by Procep) |
| CPC 464 with colour monitor | Amstrad | 4490 | advertisements Vismo, JCS and Ordividuel |
| CPC 464 with monochrome monitor | Amstrad | 2990 | advertisements Vismo, JCS and Ordividuel |
| Exl 100 | Exelvision | 3190 | advertisement JCS |
| Laser 200 | V-tech | 1280 | advertisement Ordividuel |
| Laser 310 | V-tech | 1490 | advertisement Ordividuel |
| Macintosh 512KB (all-in-one) | Apple | 29995 | article |
| MO5 | Thomson | 2450 | advertisement Ordividuel |
| MSX PHC-28 | Sanyo | 2990 | advertisement Vismo |
| MSX Prism | Goldstar | 2950 | article |
| PC 128KB (all-in-one) | Goupil | 24200 | article |
| TO7/70 | Thomson | 3590 | advertisement Ordividuel |
| VG 5000 | Philips | 1590 | article |
| ZX Spectrum 48KB | Sinclair | 1990 | advertisement Ordividuel |
| ZX81 | Sinclair | 580 | advertisements Vismo and Ordividuel |
But all things considered, it was an excellent value, as both a tape recorder and a monitor were expensive items. And most buyers didn’t have spare ones to reuse anyway as it was their first computer.
A cheap Zenith zvm122 12inch monochrome monitor cost 990 Francs, a Novex Mc1414 14inch colour monitor cost 2800 Francs, a tape recorder for the C64 cost 450 Francs, a floppy drive for the C64 cost 3500 Francs. Source: Micro 7 #21 - 11/1984
Note: In France we had an additional problem in that our TVs were SECAM only in the 80s. A monitor was required for foreign computers like the C64 PAL or the ZX Spectrum that didn't output RGB. TVs only became PAL/SECAM compatible in the 90s.
The minimum wage in France in 11/1984 was at 4116 Francs per month for a full-time job. Source: http://www.cda-strasbourg.org/smic.htm
In June 1985, the CPC 664 was launched at 4490 Francs for monochrome and 5990 Francs for colour. Source: Micro 7 #28 - 06/1985
The evolution of Amstrad CPC prices over the years is described in that article: L'histoire des CPC selon GENERAL
Late to the market
Amstrad jumped into the home computer market in 1984, just in time to shake things up with its almost unique all-in-one concept (the other one was Apple Macintosh launched a few months before the CPC 464).
It even happened after the MSX Standard of 1983 which was thought at the time to be the end of the "cowboy" era of disparate and incompatible 8bit computers.
By the end of 1985, all the big names were already established in both 8-bit and the newer 16-bit systems, leaving no room for newcomers.
From there, it turned into a survival game, with the weaker players getting pushed out. After that, no new companies managed to break into the market, except for PC clones.
The CPC series
The 464
First came the CPC464, the father of the CPC family, released on the 21st June 1984 (with production ceasing in 1990). This model used an integrated tape recorder and offered 64KB of RAM. It sold around two million units in Europe and, technology-wise, was more impressive than the ZX Spectrum and on a similar level with the Commodore 64. One notable exception was the sound chip: while the C64 employed the splendid custom SID chip, Amstrad opted for a generic sound chip - AY-3-8912 - with unremarkable features. That said, the firmware of the CPC was leagues ahead of the C64.)
At its core was a Z80 clocked at 4MHz - though screen display considerations, and the particular design of the Gate Array limited this to an effective 3.3MHz in practice - while the display was managed by the 6845 CRTC along with a gate-array chip.
The CPC464 sported a palette of 27 colours and three distinct resolutions: 160x200x16 colours (mode 0), 320x200x4 colours (mode 1) and 640x200x2 colours (mode 2, 80-column mode).

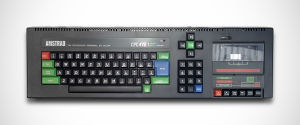

The 472
The CPC 472 was a Spanish version of the CPC 464 with an additional, non-functional 8KB RAM. The reason was that Spain charged an import tax on home computers with 64K or less RAM, the fake "72K" CPC version bypassed that tax. The tax was invented in September 1985, and was dropped a few months later (when Spain joined the EEC). Also in 1985, but independtly of that tax, Spain dictated that computers must have spanish keyboards, which resulted in two CPC 472 versions: Older models with english keys, newer ones with spanish keys. The CPC 472 is very rare.
The 664
In June 1985, Amstrad took the initial design and, building upon the same idea, removed the tape recorder and replaced it with a disc drive, using the same hardware sold as the DDI-1 add-on for 464 owners. The result: the CPC664. Sporting a less colourful and easier-to-type-on keyboard, the CPC664 appealed as a more serious machine and proved a success, especially due to its quite fast 3", 180KB/side drive.
Never the less, the 664 did have a very short life and was soon replaced by the 6128 (according to Amstrad Action, Issue 1, Oct 1985, page 8, the 664 was produced only from May until August 1985).
The 6128
Shortly afterwards, Amstrad launched the CPC6128 for the American market only, through its distributor Indescomp. The new machine sported 128k of memory and a still more sober appearance, but was otherwise nearly identical to the 664. The height of the case was greatly reduced, and the cursor keys were arranged more comfortably, both making the keyboard more ergonomically than the 464/664. Internally, the keyboard consists of two foils, although such membrane foils are relative fragile, they were more robust and reliable than the single foil used in the 664.
Despite initial denials, the machine was launched in Europe shortly afterwards, replacing the 664 for the same price - a situation which understandably irritated some of those who had recently purchased 664s. As well as the CP/M 2.2 and DR Logo that had shipped with the DDI-1 and the CPC664, the 6128 came bundled with CP/M Plus (with the GSX graphics extension) making it an appealing all-round computer at a low price. Though the 128KB of memory could not be accessed all at once from BASIC (due to limitations of the Z80), the upper 64KB could be used readily from machine code courtesy of an upgraded Gate Array. A bundled program, Bankman, provided some access from BASIC.
The presence of this extra memory and the clever design of Amstrad's CP/M Plus implementation allowed for a TPA (Transient Program Area) of 61KB, more than enough to run all CP/M software.
ANT (Arnold Number Two) prototype
At the same time, Amstrad was designing the immensely successful PCW word-processor series, also with software by Locomotive and featuring an all-in-one Z80-based design.
A shared architecture was developed that would encompass both the PCW and a new, upgraded CPC - codenamed ANT, or Arnold Number Two. It shared many features with the PCW, such as its larger memory and its exceptionally elegant screen-handling hardware, but boasted colour and sound, and retained CPC compatibility. The aim was to see off the Atari ST and Commodore Amiga, next-generation games machines already on the horizon.
A few of the PCW's design features which don't appear to make any sense on their own stem from this shared ancestry. But the project was dropped at a fairly early stage, and the CPC Classic lived on before eventually succumbing to the Plus. Only one prototype board is believed to survive, in the possession of ex-Locomotive Software engineer Richard Clayton.
The Plus series
The last models in the Amstrad CPC range were the Amstrad 464 Plus and Amstrad 6128 Plus, launched together in 1990. The CPC name is said to have been dropped because of a legal dispute with a French firm, though it is also likely that "CPC 6128 Plus" was considered too unwieldy a name and one redolent of the machine's mid-80s heritage.
Described as a solution of 'too little, too late', this was Amstrad's second effort to prolong the life of its 8-bit computer series in the face of fierce competition from new 16-bit machines (notably, the Atari ST and the Commodore Amiga). The Plus series were mostly (but not quite 100%) compatible with the original CPC computers, and incorporated a list of new features, like a cartridge port for instant program loading, DMA for the AY soundchip, enhanced hardware scrolling, programmable interrupts, 16 hardware zoomable sprites (not vectorized) with an independent palette of 15 colours, and a choice of 4096 colours all in a new, sleek case which mimicked the keyboard-computer design that was en vogue in the 16-bit market (ST, Amiga etc).
While the Amstrad Plus computers were one of the most advanced 8-bit computers ever built for the mass market, they died an early death as the 16-bit era was already in full swing.
The GX4000
By 1990 Amstrad had realised that the home market was heading towards the 16-bit machines, on one hand, and towards the new generation of game consoles like the Sega Master System or the Nintendo Entertainment System, on the other. Therefore, just as they created the 464 Plus and 6128 Plus to compete against the ST and the Amiga, they also created a stripped-down variant called the GX4000.
The GX4000 was, in essence, an Amstrad 464+ motherboard in a new case, with no keyboard, cassette deck nor disc drive, and with most extension ports gone - save for the cartridge port and two joypads.
As expected, the GX4000 was a flop that could not break the stranglehold that Sega and Nintendo had on the market at the time. As a result, the GX4000 was soon to be found selling at ridiculously low prices - as little as £19.99 in the UK - as dealers tried to offload their stock. It was a shame, because if Amstrad had realised the market potential and produced this console a few years earlier, it could well have been a success. As it was, it had to suffer the same fate as the even less powerful Commodore 64GS.
Clones
There were two clones of the CPC, neither of which were 100% compatible with the CPC.
An East German clone. The Gate-Array was replaced with TTL logic which performed a similar function. There are some hardware differences, especially in the interrupts. This clone is much closer to the CPC in terms of functionality.
This clone also had some MSX like hardware which made it possible to run some modified MSX titles. This clone also ran faster than the original CPC.
This expanded clone is the successor of the Aleste. Currently under development.
Outro
All in all, the CPC series met with great success. Although they would never achieve the universal status of the Commodore 64 or the humble Spectrum series, the CPCs managed to sell very well and attain leader status in several countries. The CPCs were very popular in the UK, Spain, France, Greece, Germany and Australia, to name a few countries.
Besides a lot of emulators, several old and modern hardware clones have been produced up to now.
