File:IM2 Plus Ack Bug.png
From CPCWiki - THE Amstrad CPC encyclopedia!
Revision as of 03:55, 30 July 2017 by Gerald (Talk | contribs) (Red marker is at start of IRQ acknowledge cycle which is immediately seen by the ASIC (INTn goes up) : vector is 0x06 Purple marker is at the effective cycle where the Z80 sample the vector, and where the ASIC sees a second acknowledge. Vector is now 0...)
No higher resolution available.

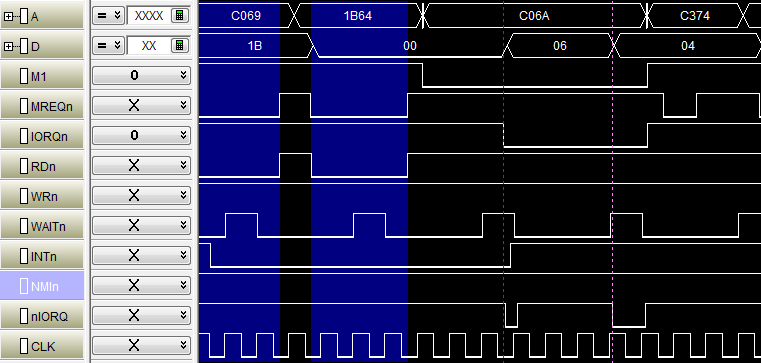

Red marker is at start of IRQ acknowledge cycle which is immediately seen by the ASIC (INTn goes up) : vector is 0x06 Purple marker is at the effective cycle where the Z80 sample the vector, and where the ASIC sees a second acknowledge. Vector is now 0x04.
